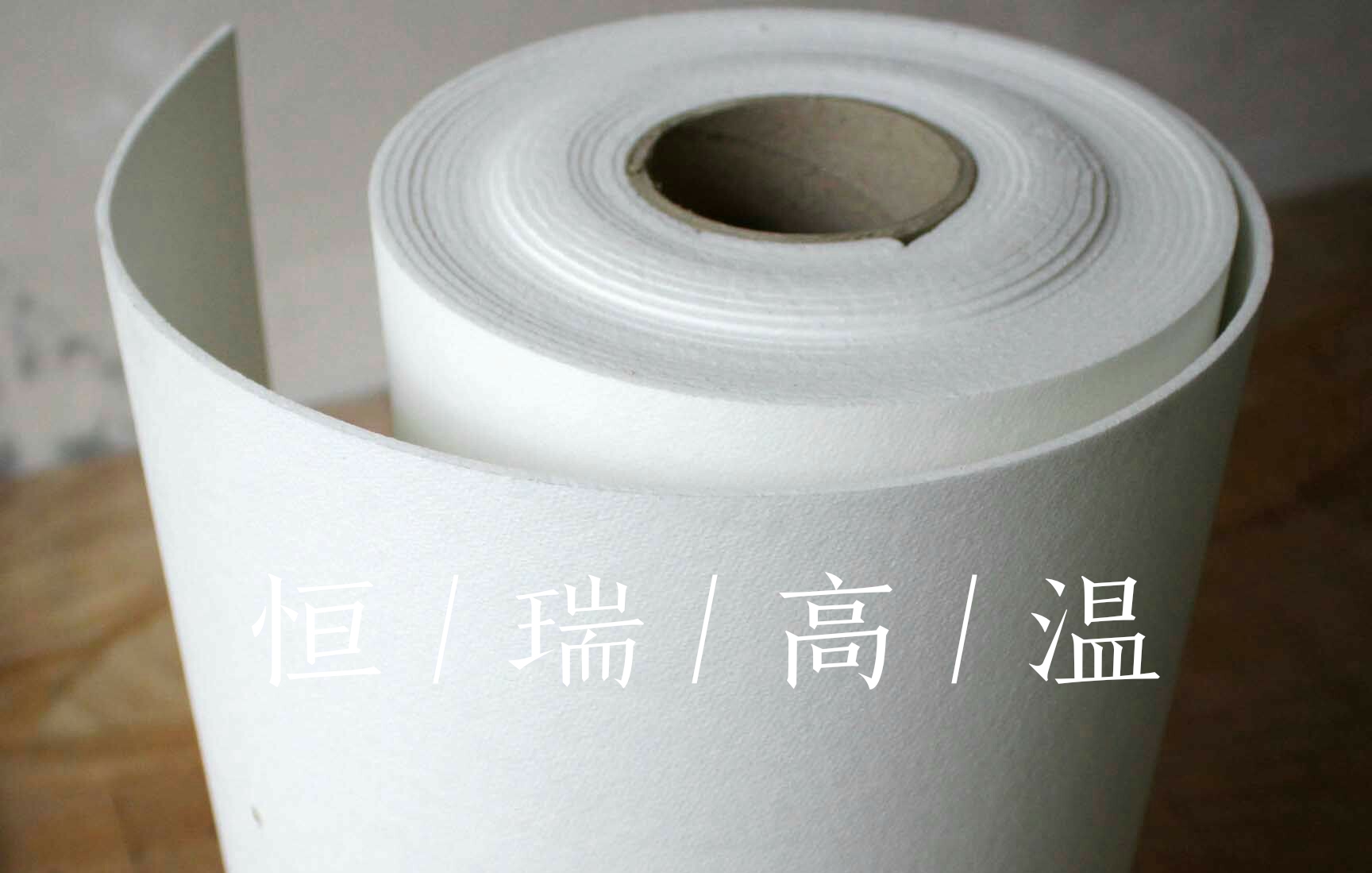

Hengrui Ceramic Fiber Paper/ Gasket

发布者:恒瑞高温


Descriptions

Hengrui ceramic fiber paper/gasket is made by special ceramic fiber and other binders through wet forming process, with the characteristics of stable chemical performance, resistance to the erosion of most chemicals. The physical property like refractory and insulation keep same when meet with oil, water or steam. The paper have smooth surface and good flexibility,which can be cut or punched into a variety of deep-processed products. Besides,Hengrui ceramic fiber paper and deep-processed products has excellent dielectric strength; the binder will be burned out when fired.

Characteristics

Excellent thermal insulation performance.

Asbestos free and low shot content.

Fine electric insulation performance.

Excellent machining performance.

Light weight, corrosion resistance and high flexibility.

Application

Thermal insulation materials of industrial furnaces, steel ladles, and foundry ladles.

Electric insulation and thermal insulation materials of industrial furnaces.

Door and sealing expansion joints of industrial furnaces.

Crystallite glass and hot melt (curved) glass stripping.

Sound absorption and thermal insulation materials of mobile mufflers.

Exhaust pipe insulation, isolation anti-sintering materials.

Insulation material for home application.

Technical Index:

Ceramic Fiber PaperHR1260STHR1350HAHR1430Zr
Classification Temperature(℃126013501430
Density(KG/M3190-210190-210190-210
Linear Shrinkage Rate(%)≤3.5≤3.5≤3.2
200KG/M3/at()℃/24h(1000℃)(1100℃)(1200℃)
Organic Content(%)≤10≤87
Thermal Conductivity Rate
(W/m.k)
600℃0.090.09-
800℃0.160.150.13
1000℃-0.20.17

Al2O344-4652-5534-36
Chemical Composition(%Al2O3+SiO2≥99.0≥99.0≥99.0
ZrO3--15-17
Other`≤1.0≤1.0≤1.0


Notes: The result is average value not guarantee value,fluctuate within the standard value, for more details about our products properties or technical support, please contact Hengrui Technical Department.

Standard Size and Package

Lengthmm

Width(mm)

Thickness(mm)

60000

610(1220)

1

30000

610(1220)

2

20000

610(1220)

3

15000

610(1220)

4

12000

610(1220)

5

10000

610(1220)

6

Supply specifications:Several pieces per box.

8/10

Package: carton with water-proof membrane. 1roll/carton.

Other specifications can be made in accordance with customer requirements.
